Kev piav qhia

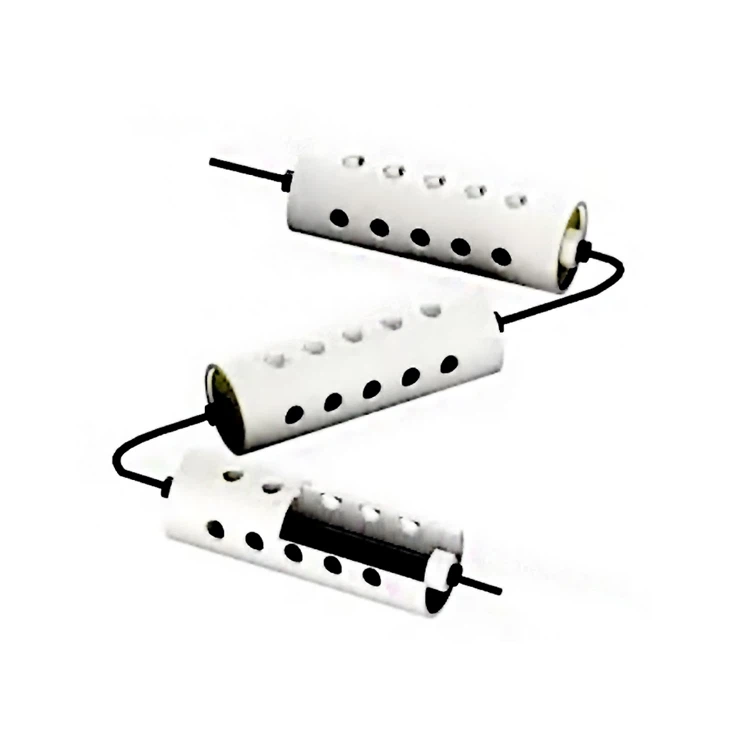

Qhov no ntsug nro anode txoj hlua yog ib qho anode array uas muaj ib tug series ntawm MMO tubular anodes ruaj rau hauv perforated PVC casing yeeb nkab thiab chained mus rau ib tug hluav taws xob cable. Lub davhlau ya nyob twg anode (qhov kawg anode ntawm ib txoj hlua sib dhos) muaj lub voj hlau rau txuas qhov hnyav.
Nws yog qhov kev xaiv zoo tshaj plaws uas siv rau hauv kev tiv thaiv cathodic tam sim no rau lub neej txuas ntxiv ntawm ntug dej hiav txwv lossis cov qauv hauv hiav txwv. Nws tuaj yeem ntsia tau yam tsis muaj divers lossis ROV khoom siv.
Daim ntawv thov teb
Vetical Tension Anode yog qhov zoo siab tam sim no retrofit anode system feem ntau siv rau retrofiting ntawm ntug dej hiav txwv CP systems.
Nta
1. Ib qho yooj yim installation thiab hloov tsis muaj divers
2. Kev siv tshuab paub tab, kev nyab xeeb thiab kev ua haujlwm ruaj khov
3. Kev faib tawm tam sim no
4. kav ntev
Tshuaj muaj pes tsawg leeg
|
Txuj |
Fe% |
C % |
N % |
H % |
O % |
Lwm yam impurities (Ib leeg)% |
Lwm yam impurities (Tag nrho)% |
Ti % |
|
ASTM B338 Gr1 |
Tsawg dua lossis sib npaug rau 0.02 |
Tsawg dua lossis sib npaug rau 0.08 |
Tsawg dua lossis sib npaug rau 0.03 |
Tsawg dua lossis sib npaug rau 0.015 |
Tsawg dua lossis sib npaug rau 0.18 |
Tsawg dua los yog sib npaug rau 0.1 |
Tsawg dua lossis sib npaug rau 0.4 |
Tseem tshuav |
Electrochemical Khoom
|
Daim ntawv thov |
Current Density A/㎡ |
Lub neej (xyoo) |
|
Av |
100 |
25 |
|
Dej hiav txwv |
600 |
25 |
